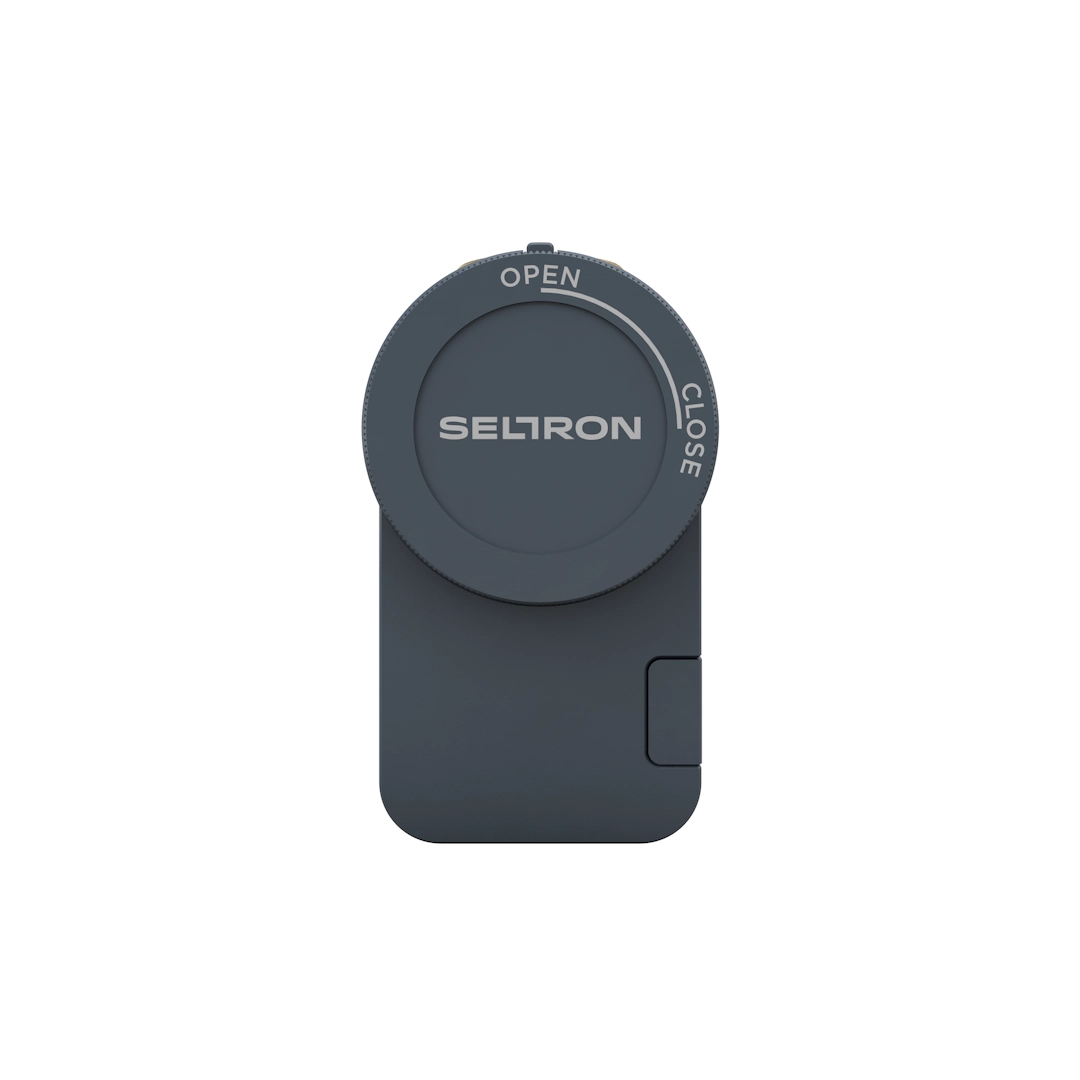

Actuator AQD with 3-way diverting ball valve BVQ

Presentation

Actuator AQD with 3-way diverting ball valve BVQ allows switching between different heating sources, heating systems as well as domestic hot water and pool heating systems.

For controlling zone valves in heating or cooling systems.
Switchover between heating and cooling.
Switchover between heating and domestic hot water heating.
Switchover between various heat sources.
Various other heating devices.

Features

Easy assembly or disassembly on the valves tool-free
Compact size.
Mistake-proofing assembly of the actuator.

Documentation

Download

Technical Data Sheet - EN (PDF)

Outlined functions

Quick, simple and tool free installation

The Design of the actuator and valve was made with the focus on installer and installation process. Coupling of the actuator is completely tools free. The actuator can be installed on the valve, by simple one hand press of the actuator onto the valve body. For disassembly, it is necessary to only pull the actuator off the body.
The actuator is protected against self-removal from the valve with special locking solution.

Direction selector

The actuator allows quick and easy change of valve opening direction. By simply removing the knob, the rotation direction selector becomes accessible and can be pulled out of its slot, rotated in the opposite direction, and reinserted. This enables quick and intuitive adjustment, ensuring flexibility during installation and easy adaptation to different valve configurations without the need for additional tools.

Permanent clutch with click system for manual operation

In case of a need, the valve can be manually moved by simply pressing the clutch button. With that, the motor is switched off to totally reduce energy consumption. At the same time, with the big ergonomic knob, it is very easy to move the valve into the desired position.
Additionally, it is clearly marked on the actuator body the actual valve position. In these case, it is always known in what position the valve is and what is its function.

Modern and compact design

The size of the product is crucial, especially when installed in tight spaces. With this in mind, the actuator was designed as a highly compact solution that easily fits into such environments. The modern and space-efficient design allows high-density mounting, making it ideal for installations where multiple actuators need to be placed in close proximity. This ensures optimal use of available space without compromising functionality or performance.

Low torque and low noise design

High precision valve design allows low torque operation. Dedicated design of actuator and valve enables low energy consumption during operation.
With attention to details, we created also a solution that operates with very low noise, what is specially important where product in installed in or near living areas.

Technical data

Actuator	AQDR Basic	AQDRS Basic	AQDR Standard	AQDRS Standard
Connection voltage	230 V~ or 24 V~	230 V~ or 24 V~	230 V~ or 24 V~	230 V~ or 24 V~
Torque Nominal	3 Nm	3 Nm	3 Nm	3 Nm
Torque Peak	5 Nm	5 Nm	5 Nm	5 Nm
Rotation speed	13 s	13 s	13 s	13 s
Manual movement	—	—
Direction selector	—	—	Optional	Optional
Auxiliary pump OFF switch	—		—
Own consumption	< 5 W	< 5 W	< 5 W	< 5 W
Consumption in standby mode	< 0,25 W	< 0,25 W	< 0,25 W	< 0,25 W
Degree of protection	IP 42	IP 42	IP 42	IP 42
Safety class	II for the voltage of 230 V~ III for the voltage of 24 V~	II for the voltage of 230 V~ III for the voltage of 24 V~	II for the voltage of 230 V~ III for the voltage of 24 V~	II for the voltage of 230 V~ III for the voltage of 24 V~
Housing material	PC+ABS - dark grey	PC+ABS - dark grey	PC+ABS - dark grey	PC+ABS - dark grey
Standard cable length	1 m	1 m	1 m	1 m
Permissible ambient temperature	0÷55 °C	0÷55 °C	0÷55 °C	0÷55 °C
Medium temperature	0÷95 °C, z distančnim adapterjem -15÷125 °C	0÷95 °C, z distančnim adapterjem -15÷125 °C	0÷95 °C, z distančnim adapterjem -15÷125 °C	0÷95 °C, z distančnim adapterjem -15÷125 °C
Storage temperature	-20÷75 °C	-20÷75 °C	-20÷75 °C	-20÷75 °C
Relative humidity	Max. 85 %, without condensation	Max. 85 %, without condensation	Max. 85 %, without condensation	Max. 85 %, without condensation
Number of pieces in a package unit	12 pcs	12 pcs	12 pcs	12 pcs
Product weight	390÷860 g	390÷860 g	390÷860 g	390÷860 g
Dimensions
Electrical connection

Motorni pogon AQD s 3-potnim vertikalnim krogelnim ventilom BVQC1..L – notranji navoj

Type	DN	Kvs	Connection	H*	H1*	Ø*	S*	Weight (g)	Z*	Z1*	Y*
BVQC120L	DN20	9.6	Rp 3/4 ”	46.8	10	19	68	415	95.8	135.8	101
BVQC125L	DN25	11.3	Rp 1 ”	51.3	10	24	81	615	100.3	143.3	105.2
BVQC132L	DN32	25	Rp 1 ¼ ”	57.8	10	32	92	910	106.8	158.8	110.7

*Dimensions in mm

Motorni pogon AQD s 3-potnim vertikalnim krogelnim ventilom BVQC3..L – kompresijski priključek

Type	DN	Kvs	Connection	H*	H1*	H5*	Ø*	Ø1*	S3*	Weight (g)	Z*	Z1*	Y*
BVQC320L	DN20	9.6	Rp 3/4 ”	46.8	10	40	19	22	73	495	95.8	135.8	101
BVQC325L	DN25	11.3	Rp 1 ”	51.3	10	42	24	28	85	710	100.3	142.3	107.2

*Dimensions in mm

Motorni pogon AQD s 3-potnim vertikalnim krogelnim ventilom BVQC5..L – zunanji navoj s priključki

Type	DN	Kvs	Connection	H*	H1*	H3*	H4*	Ø*	S1*	S2*	Weight (g)	Z*	Z1*	Y*
BVQC520L	DN20	9.6	Rp 3/4”	46.8	10	40	72	19	73	105	720	95.8	167.8	137
BVQC525L	DN25	11.3	Rp 1”	51.3	10	42	75.5	24	85	118	1180	100.3	175.8	152
BVQC532L	DN32	25	Rp 1 ¼”	57.8	10	52	89	32	95	132	1720	106.8	195.8	165

*Dimensions in mm
