Actuators AVDUS
0%
Presentation
AVDUS actuators are intended for position control of rotary mixing and ball valves. The installation and removal can be mostly completed without any tools.
- For controlling mixing valves in heating or cooling systems.
- Switchover between heating and cooling.
- Switchover between heating and domestic hot water heating.
- Switchover between various heat sources.
- Various other central heating devices.
Features
- Fits rotary mixing valves or ball valves complying with ISO 5211.
- The actuators feature four different installation positions on the valve.
- Resistant to mixing valve blockages.
- The installation and removal can be mostly completed without any tools.
- Operation indication with LED lights.
- An easy replacement of the power cord if damaged.
- A permanent clutch features a switchover between the automatic and manual operation modes. During a switchover, the actuator is switched off electrically.
- Option of adjusting the turning direction and operation functions, without interference with the actuator interior.
Documentation
Download
Outlined functions
Universal 2- or 3-point operation
The universal actuator version provides a 2- or 3-point operation. Based on the
electrical connection the actuator provides a 2- or 3-point control.
Clutch for manual operation
Manual mode clutch of the AVD actuator can be activated by pressing the
key. An activated clutch is indicated with a dimmed direction indication LED.
Quick installation
Innovative accessories and the installation system provide a quick installation
and removal of the AVD actuator to/from the ball valve, mostly without any
tools.
Plug-in connector
The AVD actuator with an integrated outlet in the housing for connector
connection of the power cord. That provides a simple cable replacement in
case of damage.
AUX switch
The AVD actuator features an extra switch for switching on loads up to 5 A,
230 V~. In order to configure an auxiliary switch, simply remove the manual
turning button. The activation/deactivation point can be configured in any
actuator position.
Technical data
| Technical data | AVD | AVD S | AVD R | AVD RS | AVD U | AVD US | AVD Y | AVD M | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connection voltage | 230 V~ or 24 V~ | 24 V~ or 24 V= | |||||||||||||
| Own consumption | 2.5–5 W | ||||||||||||||
| Auxiliary pump OFF switch | — | 250 V~, 3 A | — | 250 V~, 3 A | — | 250 V~, 3 A | — | — | |||||||
| Degree of protection | IP42 | ||||||||||||||
| Safety class | II for the voltage of 230 V~, III for the voltage of 24 V~/V= | ||||||||||||||
| Housing material | PC - dark grey | ||||||||||||||
| Standard cable length | 2 m | ||||||||||||||
| Operating temperature | 0÷50 °C | ||||||||||||||
| Storage temperature | -20÷75 °C | ||||||||||||||
| Product weight | 390÷860 g | ||||||||||||||
| Number of pieces in a package unit | 24 pieces | ||||||||||||||
| Dimensions |  | ||||||||||||||

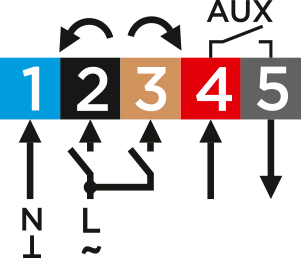

| Electrical connection | AVD | AVD S | AVD R | AVD RS | AVD U | AVD US | AVD Y | AVD M | |||||||
 |  |  |  |  |  |  |  | ||||||||
Performance comparison
| AVD | AVDS | AVDR | AVDRS | AVDU | AVDUS | AVDY | AVDM | |
|---|---|---|---|---|---|---|---|---|
| Application | ||||||||
| For controlling mixing valves in heating or cooling systems |  | | — | — | | | | |
| Switchover between heating and cooling | | | | | | | | |
| Switchover between heating and domestic hot water heating | | | | | | | | |
| Switchover between various heat sources | | | | | | | | |
| Various other central heating devices | | | | | | | | |
| Torque | ||||||||
| 5 Nm | | | | | | | — | |
| 10 Nm | | | | | | | | |
| 15 Nm | | | | | | | | |
| Operation mode | ||||||||
| Two-point | — | — | | | | | — | — |
| Three-point | | | — | — | | | — | — |
| Proporcionalno 0(2)÷10 V ali 0(4)÷20 mA | — | — | — | — | — | — | | — |
| PWM control signal | — | — | — | — | — | — | | — |
| ModBus | — | — | — | — | — | — | — | |
| Pump ON switch | ||||||||
| Adjustable auxiliary switch for activating the circulation pump in any actuator position | — | | — | | — | | — | — |
| Possible running speeds | ||||||||
| 15 s/90 ° | 5 Nm | 5 Nm | 5 Nm | 5 Nm | 5 Nm | 5 Nm | — | — |
| 30 s/90 ° | 5 Nm | 5 Nm | 5 Nm | 5 Nm | 5 Nm | 5 Nm | — | — |
| 60 s/90 ° | | | | | | | | |
| 120 s/90 ° | | | | | | | | |
| 240 s/90 ° | | | | | | | — | — |
| 480 s/90 ° | | | | | | | — | — |
| Power supply | ||||||||
| 230 V~, 50 Hz | | | | | | | — | — |
| 24 V~, 50 Hz | | | | | | | | |
| 24 V= | — | — | — | — | — | — | | |
| Operation display | ||||||||
| Display of valve turning direction with LED lights | | | | | | | | |
| Valve position indication on the scale | | | | | | | | |
| Indication of the auxiliary (AUX) switch activation | — | | — | | — | — | — | — |
| Resistant to mixing valve blockages | | | | | | | | |
| Installation | ||||||||
| Fits rotary mixing valves or ball valves complying with ISO 5211 | | | | | | | | |
| The installation and removal can be mostly completed without any tools | | | | | | | | |
| The actuators feature four different installation positions | | | | | | | | |
| Connection cable fitted with a connector | | | | | | | | |
| Turning direction adjustment and operation functions, without interference with the actuator interior | | | | | | | | |
| A permanent clutch features a switchover between the automatic and manual operation modes. During a switchover, the actuator is switched off electrically. | | | | | | | | |
