Surface temperature sensor VF/Pt
0%
Presentation
Naležno temperaturno tipalo VF/Pt se uporablja za merjenje temperature v cevovodih.
- VF/Pt surface sensor is compatible with all Seltron heating controllers and is used to measure pipeline temperature.
Technical data
| Tehnični podatki | VF/Pt |
|---|---|
| Sensor type | Pt1000 |
| Temperature range | 0÷85 °C |
| Minimum cross section of the wires | 0,3 mm2 |
| Standard cable length | 3 m |
| Maximum cable length | 30 m |
| Product weight | 120 g |

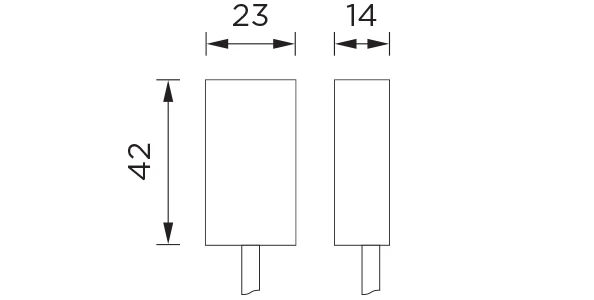

| Dimensions |  |
Performance comparison
| AFD | VF | TF | VF2 | PS | CF | |
|---|---|---|---|---|---|---|
| Sensor type Pt1000 |  | | | | | |
| Temperature range | ||||||
| 0 ÷ 40 °C | | | | | | |
| 0 ÷ 85 °C | — | | | | — | |
| -25 ÷ 65 °C | | — | | | — | — |
| -25 ÷ 150 °C | — | — | | — | — | — |
| 20 ÷ 350 °C | — | — | — | — | — | |
| Other data | ||||||
| Minimum cross section of cables for sensors 0,3 mm2 | | | | | | |
| Maximum length of cables for sensors 30 m | — | | | | | |
| Threaded connection GN 1/4 ZN | — | — | — | — | — | — |
| Product weight in grams | 65 | 120 | 100 | 84 | 50 | 120 |
